AS 50 HORIZONTAL INTERMITTENT CARTONER-

Horizontal and vertical cartoners are primarily designed for packing various individual or multiple products into cartons of various sizes and shapes.

Flexible, cost effective solutions, outstanding quality and
reliability are common for for the complete range
of various machines.

The AS 50 is a horizontal cartoning machine with continuous intermittent motion.

This cartoner is offering wide capability of carton sizes and can handle variety of products.

AS 50 can be customized to handle products with different characteristics.

This horizontal cartoner is suitable to handle cosmetics, pharmaceutical products, as well as baked products, frozen foods, variety of spare parts, and miscellaneous components, etc.

This is mechanical machine, where movement of all components is synchronized by common cam driven by electric motor with variable speed control.

Pre-glued carton blanks can have:-

  • tuck-in closure.
  • flaps glued by hot melt.
  • tuck-in closure and flaps glued by hot melt.

Machine is equipped with safety guards complying to CEE requirements.

AS 50 horizontal cartoner can be equipped with the following options:-

  • Ink or engraved product coder.
  • Hot melt closures.
  • Pre-folded leaflet inserter.
  • Machine can be equipped with wheels.
  • Automatic feeding system suitable for jars, tubes, bags, etc.

TECHNICAL DATA
AS 50
Mechanical speed:-
70 cartons/min
Power supply:-
400 VAC/50 Hz
Power consumption - machine only:-
1.5 KW
Power consumption with
hot-melt installed:-
5.5 KW
Air consumption:-
14 Nl/cycle
Product change over time:-
15 minutes
Weight:-
450 Kg


Complete turnkeys packaging solutions are available on request.

Please contact us on info@jzw.com.au to discuss your application.

Horizontal Cartoners, intermittent machines, automatic vertical cartoner, wraparound cartoning machine, continuous cartone, casepacker, compact paletizer

AS 50 horizontal intermittent cartoner.



Horizontal Cartoners, intermittent machines, automatic vertical cartoner, wraparound cartoning machine, continuous cartone, casepacker, compact paletizer

AS 50 horizontal intermittent cartoner - product loading options.

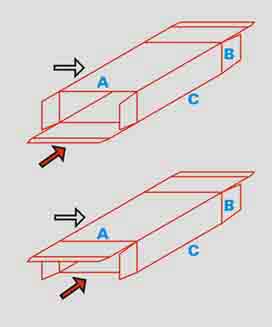

Carton dimensions
Min. - Max.
A
18 - 90 mm
B
18 - 60 mm
C
55 - 180 mm
